QUALITY CONTROL EQUIPMENT
SM Contact designs and produces quality control equipment for splice and crimp connection: micrograph laboratories, pull force and splice or crimp height devices, as well as specialized measurement software.

In many industries, especially in the automotive, quality standards have been developed and are widely applied: VW, USCAR, TYCO, PSA, Renault, TDK and others. Compliance with their requirements is the key to a successful business, as well as to the safe and efficient operation of the final product. That is why the availability of reliable laboratory equipment and the possibility of timely quality monitoring are so important in the production.

SM Contact offers not only the equipment itself, but also seminars on current standards, testing algorithms and the principles of quality control devices operation.

Choose one of SM Contact equipment configuration to match necessary automation level and production volumes.
  • SKP 4000 & SKB 4000
    Mobile micrograph laboratory for splice quality monitoring
  • SK 6000
    Stationary micrograph laboratory for splice quality monitoring
  • EPT 1000
    Motorized pull force tester for crimp and splice connections
  • Viso
    PC measurement software for splice micro-section analysis
  • CrimpiX
    Splice crimping height measurement device
SKP 4000 & SKB 4000
Mobile micrograph laboratory enables quick, user-friendly, reliable, and cost-effective quality assessment of a crimp or splice connection.

All the work steps are integrated in one device: first a sample is cut, its cross-section surface is grinded and etched to make necessary details visible, finally it is located under the optics to get macro image and to measure its parameters.

Brand-new sample holder assures proper sample positioning and makes transfer from one process stage to another easy and fast. One micrograph costs less than 1.00€ (example based on 10,000 micrographs incl. consumable materials).

Technical characteristics
  • Power supply
    230 V / 50 Hz; 110 V / 50 Hz (US); 100 V / 60 (50) Hz (Japan)
  • Power
    350 W
  • Cutting and grinding module rotation speed
    5 000 – 20 000 rpm, separately regulated
  • Etching agent
    CE 1
  • Etching voltage
    12 V
  • Etching current
    1,5 A (optionally adjustable)
  • Protective devices
    Plexiglass cover
  • Lighting work area
    LED
  • Cycle time
    3-5 min.
  • Weight
    26 kg
  • Dimensions SKP 4000 (W x D x H)
    465 x 408 x 437 mm
  • Dimensions SKB 4000 (W x D x H)
    575 x 517 x 484 mm
  • CE conformity
STANDARD FEATURES

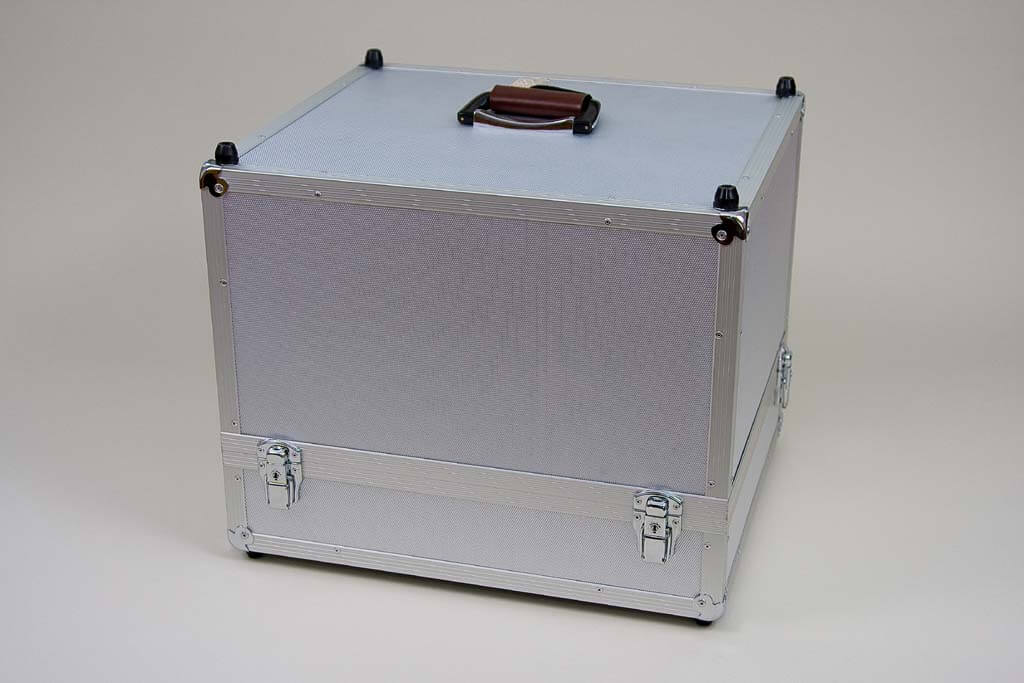

  • Case
    Case
    SKP 4000 case has a handle for convenient movement and a compartment for safe transportation of the optical lens. It was designed for being frequently moved, e.g. between rooms or to the premises of the third part. The firm metal lids are quickly opened using clamp fasteners.
    SKB 4000 is a benchtop version more adapted for work within one place. It has a protective cover which could be closed and locked at the end of work to keep the device safe from environmental impact.

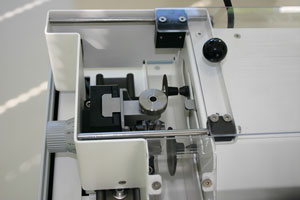

  • Cutting & grinding module
    Cutting & grinding module
    This module consists of a cutting wheel, grinding wheel and a transport carriage.
    To start the process operator places a sample into a sample holder and a sample holder into the carriage. As soon as a protective cover is closed, the discs could be launched. Carriage is moved between the discs with a lever and its proximity to the disk is adjusted with a feed screw.
    The cutting and grinding module rotational speed can be separately regulated from 5 000 to 20 000 rpm.

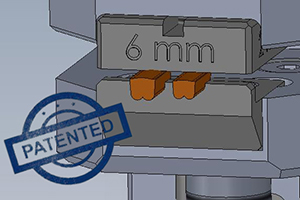

  • Innovative sample holder
    Innovative sample holder
    Brand new holder by SM Contact has interchangeable jaws adapted to corresponding connection.
    Its shape precisely follows the shape of a sample, while special stop block fixes the sample at the same horizontal axial position. As a result perpendicular sample position and proper cut guarantee valid measurement results.

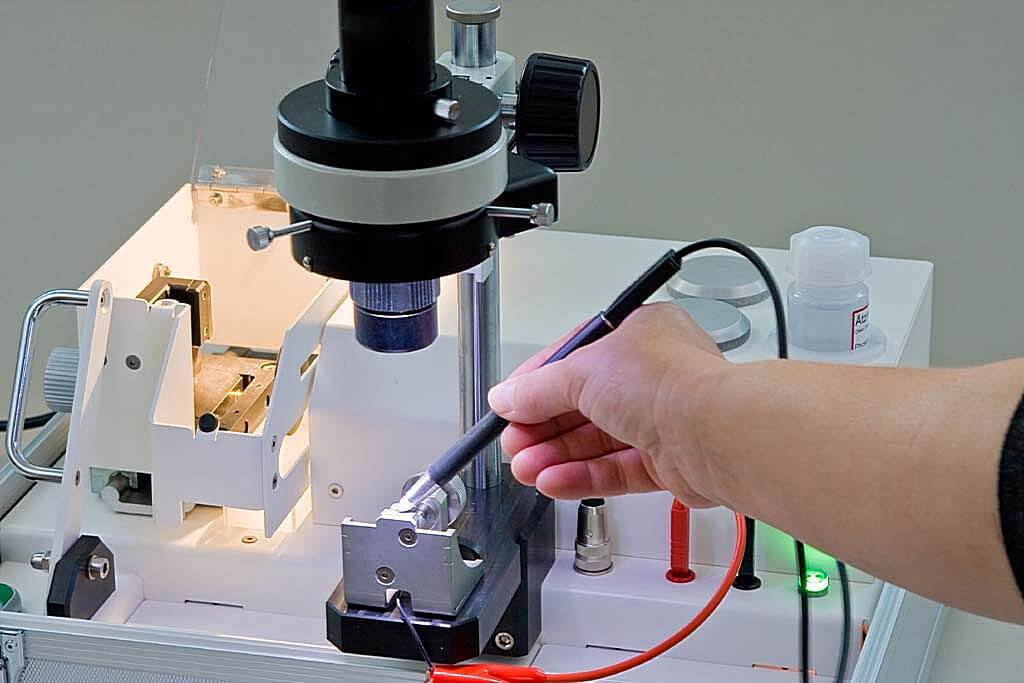

  • Etching module
    Etching module
    Etching is necessary to make relevant details of a cross-section more visible. The current is applied to the sample holder and a felt pen dipped in electrolyte is used as a cathode.
    Stable position of a sample holder is assured by the special receptacle and the etching time is limited with an adjustable timer for reasons of energy saving and safety.

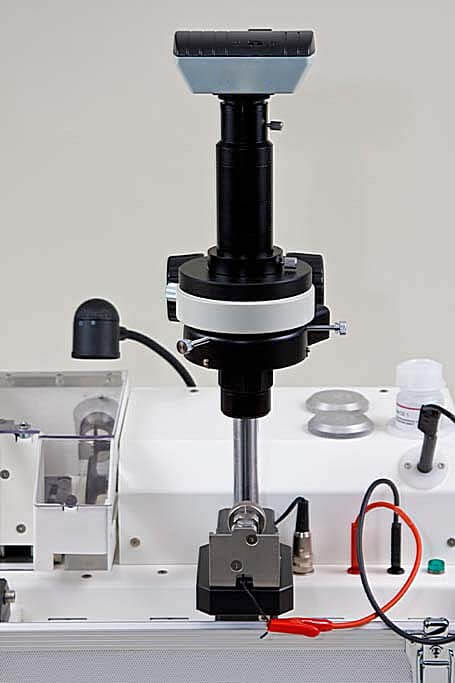

  • Imaging
    Imaging
    Prepared sample is located under the microscope to capture the image to be measured. Zoom lens with USB camera transfers the image to the standalone PC (SKP 4000) or to the built-in tablet (SKB 4000). Adjustable ring LED light provides good visibility.
  • Viso 6.00 measurement software
    Viso 6.00 measurement software
    Captured image is measured with a help of special software – Viso 6.00. Operator chooses the parameters to measure, its reference values and performs the measurement on a cross-section image: measurements with appropriate presets or comparison to the Control list.
    It also provides dimensions detection and data export to PDF format.

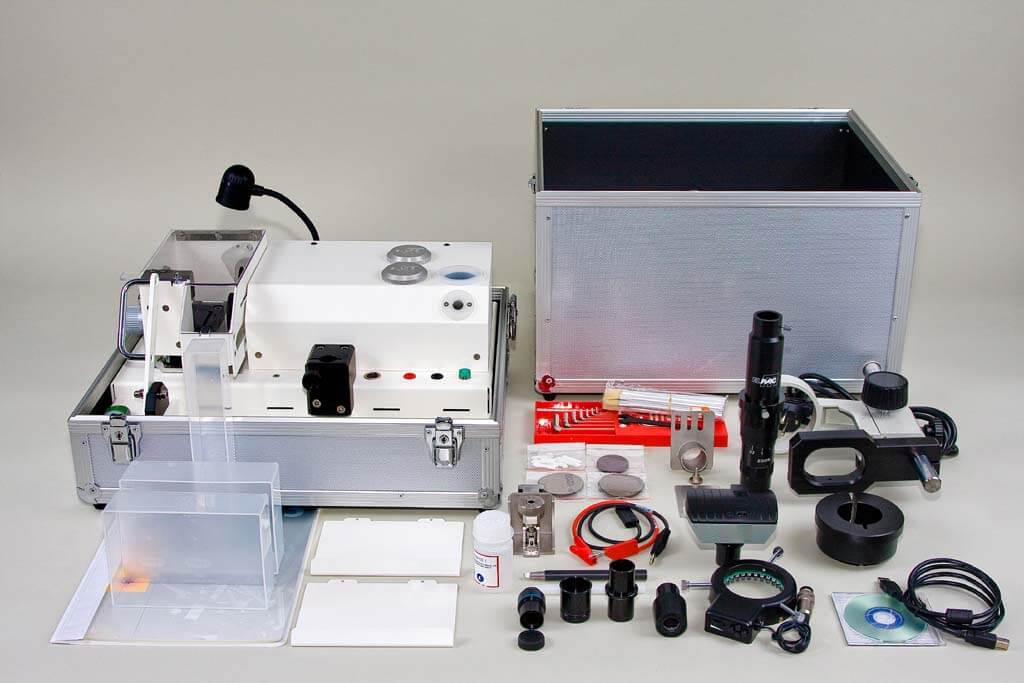

  • Supply kit
    Supply kit
    All the necessary spare parts and consumables are included into supply kit: abrasive papers, cutting disks, etching pen inserts, electrolyte, crossline reticle, etc. It is also available on stock on tooling.smcontact.eu
OPTIONS
  • Viso 6.00 automatic quality control
    Viso 6.00 automatic quality control
    All the measurement results could be automatically uploaded to Customer‘s private area in SM Cloud data storage. If they diverge from the Control list, SM Contact engineers get a signal and provide Customer with the assistance.

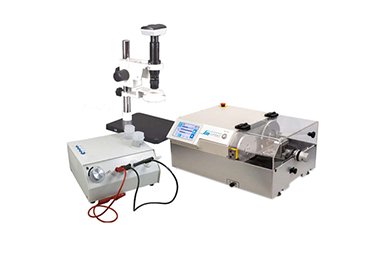

SK 6000
Micrograph laboratory SK 6000 consists of the following separate units: SKT 6000 cutting module, SKE 3000 etching module, and LMX 2000 microscope. This configuration allows measurement of larger components.

First a sample is cut, its cross-section surface is grinded and etched to make necessary details visible, finally it is located under the optics to get macro image and to measure its parameters. The accuracy of the quality assessment is assured by the patented SM Contact sample holder and Viso 6.00 measurement software.

Technical characteristics
  • Power supply
    230 V / 50 Hz
  • Power
    350 W
  • Protection type
    IP 20
  • Cycle time
    3-5 min.
  • CE conformity
  • Cutting module SKT 6000
  • Cutting speed
    600-3000 rpm
  • Grinding speed
    300-1500 rpm
  • Dimensions (W x D x H)
    230 x 545 x 510 mm
  • Weight
    25,1 kg
  • Etching module SKE 3000
  • Min. etching strength
    0,35 A
  • Max. etching strength
    3,15 A
  • Electrolyte
    AE 7 + CE 1
  • Dimensions (W x D x H)
    250 x 210 x 125 mm
  • Weight
    6,5 kg
  • Microscope LMX 2000
  • Zoom ratio
    1:65 (0,7x -4,5x)
  • Total Magnification / Field of view
    10x -68x / up to 35 mm
    15x -101x / up to 23,5 mm
    20x -135x / up to 17,6 mm
  • USB camera
    IDS UI-3580LE-C-HQ
  • Dimensions (W x D x H)
    320 x 300 x 475 мм
  • Weight
    10 kg
STANDARD FEATURES
  • Cutting module SKT 6000 with automatic cutting feed
    Cutting module SKT 6000 with automatic cutting feed
    This module consists of a cutting wheel, grinding wheel and a transport carriage. To start the process operator places a sample into a sample holder and a sample holder into the carriage. As soon as a protective cover is closed, the discs could be launched. Carriage is automatically moved between the discs and its proximity to the disk is adjusted with a feed screw. The cutting and grinding module rotational speed can be separately regulated from 300 to 3 000 rpm. Cutting speed and pressure remain constant. Damage of the sample is thereby prevented.
  • Innovative sample holder
    Innovative sample holder
    Brand new holder by SM Contact has interchangeable jaws adapted to corresponding connection.
    Its shape precisely follows the shape of a sample, while special stop block fixes the sample at the same horizontal axial position. As a result perpendicular sample position and proper cut guarantee valid measurement results.
  • Etching module SKE 3000
    Etching module SKE 3000
    Etching is necessary to make relevant details of a cross-section more visible. The current is applied to the sample holder and a felt pen dipped in electrolyte is used as a cathode.
    Two different electrolyte solutions are supplied: a slightly acidy and a neutral solution. Etching strengths are available from 0,35 A to 3,15 A. LED light indicates that etching is on.
  • Microscope LMX 2000
    Microscope LMX 2000
    Prepared sample is located under the microscope to capture the image to be measured. 5x optics is equipped with LED lightinh and a shutter. Zoom lens with USB camera transfers the image to the standalone PC.
  • Viso 6.00 measurement software
    Viso 6.00 measurement software
    Captured image is measured with a help of special software – Viso 6.00. Operator chooses the parameters to measure, its reference values and performs the measurement on a cross-section image: measurements with appropriate presets or comparison to the Control list.
    It also provides dimensions detection and data export to PDF format.
  • Supply kit
    Supply kit
    All the necessary spare parts and consumables are included into supply kit: abrasive papers, cutting disks, etching pen inserts, electrolyte, crossline reticle etc. It is also available on stock on tooling.smcontact.eu
OPTIONS
  • Special optics for microscope
    Special optics for microscope
    Optics 0,75x and 0,5x for microscope are available upon request to change operating distance from the sample to the optics.
  • Viso 6.00 automatic quality control
    Viso 6.00 automatic quality control
    All the measurement results could be automatically uploaded to Customer‘s private area in SM Cloud data storage. If they diverge from the Control list, SM Contact engineers get a signal and provide Customer with the assistance.
EPT 1000
EPT 1000 is a motorized pull force tester for measurement of the pull forces in crimp connections and peeling forces in welding joints.

Versatility and ease of use are provided by rotating interchangeable sample holder, long displacement path and intuitive graphical interface. A speed-controlled motor guarantees constant pull speed and accurate results.

The testing process is visualized on the graphical display in real time, and the results are automatically saved to the archive.

Technical characteristics
  • Measurement range
    0 – 1000 N (can be changed upon demand)
  • Accuracy
    0,05-1% of max. measurement range
  • Measurement units
    N, kgf, Ibf
  • Variable pull speeds
    25, 50 and 100 mm/min.
  • Operating temperature
    0 – 40° C
  • Max. displacement
    157 mm
  • File synchronization via USB or Wi-Fi
  • Ingress protection
    IP 20
  • Power supply
    220 V/AC
  • Weight
    11,5 kg
  • Dimensions (W x D x H)
    450 x 185 x 170 mm
  • Measurement modes
    Break, Hold, Hold & Break
  • CE and EMC machinery conformity

STANDARD FEATURES
  • Extra-long displacement path
    Extra-long displacement path
    Thanks to well-thought-out system (motor, guides, etc.) EPT 1000 allows displacement up to 157 mm. It makes the device applicable to large connections.
  • Changeable force sensor
    Changeable force sensor
    Pull-force sensor is selected according to customers demand. Thus measurement range and accuracy can vary.
  • Ergonomic clamp arrangement
    Ergonomic clamp arrangement
    As a sample holder, a clamp or adapter with 12 slots of various widths are installed for wires of appropriate diameter. Therefore, the device can be used for almost all required cable processing tests (IEC 60352-2).

    Sample positioning is as easy as ABC: operator pushes the lever and place the sample, as soon as the lever is released the spring system automatically pulls the clamp back. No need for a wrench or other special tools.
  • Measurement archive
    Measurement archive
    Measurement is done automatically in the selected mode. It is also possible to move the carriage manually if necessary. Results are visualized in real time in the form of force-time curve graphics. Measurement modes:

    1. Break (destructive) – the sample is pulled to break. The break point is determined by 25% of the applied maximum force.

    2. Hold – the sample is not destroyed during this test. It is subjected to a defined force Fh. The applied force is held for a defined time Th.

    3. Hold & Break – two previous modes are combined (hold and pull off). First, the hold mode is applied. Its duration is equal to time Th. Then the wire is subjected to a breaking pull force.
  • Measurement archive
    Measurement archive
    All measurements results are saved even if the test is aborted: selected mode, force-time curve graphics, crimp width and height, maximum force, and hold duration of maximum pull-force (in Hold and Hold & Break modes).
  • User-friendly touch screen interface
    User-friendly touch screen interface
    65536-colour touch screen displays current measurement features, its settings and measurement archive. Settings menu allows to choose a mode, its parameters and carriage options, to select speed, interface language and measurement unit, as well as to start calibration of the device.
    Intuitive navigation simplifies operation and enables reproducible test results.
OPTIONS
Viso 6.00 is PC measurement software that helps to evaluate splice quality control by means of micro-section analysis and to maintain timely direct interaction with SM Contact engineering staff.

All the measurements are taken according to predetermined industry (VW, PSA, etc.) or customized reference values. Interaction between user and supporting engineers is performed through SM Cloud data storage and is an essential part of Full Process Control (FPC) Solution system.

If connected to the Internet, Viso 6.00 is updated automatically as soon as new updated appears.

This intuitive software guides the operator during the following operations:

1. Operator prepares the sample with a help of laboratory equipment, capture its image and transfer it to Viso.
2. Opening the operating panel of a software, operator chooses the mode: free measurement or Control list correlation.
3. Selecting the free mode, operator chooses the parametres to measure. In the Control list mode the parametres and its reference values are predetermined.
4. Operator measures the parameters by setting the start and end points of each measurement in the working area.
5. Viso 6.00 generates a report (free measurement) or a comparison report (Control list mode).
STANDARD FEATURES
  • Control list with reference values
    Control list with reference values
    Optimal dimensions and its’ tolerances found in Control lists are determined by SM Contact for the corresponding connection on the step of qualification laboratory tests and FEA simulation (cross-view, pull-force, electrical resistance, galvanic corrosion, CPK match, etc.).

    If connected to the Internet, Viso 6.00 automatically downloads all the new Control lists corresponding to the certain customer. Relevant documents are identified by the unique license number that is given to each user.
  • Conformity to individual and industrial standards
    Conformity to individual and industrial standards
    Viso 6.00 has 5 pre-stored sets of parameters (presets) which are to be examined during free measurement. There is one preset provided for all the possible parameters measurement and several more corresponding to the most useful industry standards (VW 60330, USCAR 21, TYCO114-18022-10, PSA 9634115099, Renault 36-05-019, SM Contact Norm).
  • Automatic measurement of splice dimensions and cross section area
    Automatic measurement of splice dimensions and cross section area
    It is possible to launch automatic size recognition of the following 5 parameters: crimp height; crimp width; support angle; inner terminal surface; final cross sectional area.
  • Simple-to-use program with guided procedure
    Simple-to-use program with guided procedure
OPTIONS
  • Full Process Control (FPC) Solution
    Full Process Control (FPC) Solution
    If user’s service agreement includes FPC Solution the following quality monitoring and maintenance options are provided along with Viso 6.00 software:



    1. Initial connection qualification and tooling definition (Control list forming);

    2. SM Cloud data storage with private customers’ access keeping all connections’ information and its update (including Control lists, manuals and CPK reports);

    3. Automatic notification of the supporting engineers in case of values deviation;

    4. Annual re-validation of customer’s connections with updating of the Control list and drawing up recommendations for meeting the quality requirements.
CrimpiX
CrimpiX achieves measurement accuracy thanks to quick-change clincher which follows the shape of a sample.

Operator lifts spring-loaded pin by pushing the lever. Then pin goes down to the sample and measurement is performed. Measurement results are saved on SD card or can be transferred to PC by Bluetooth.

Spring-loaded pin provides sufficient pressure to measure the sample, but doesn‘t deform it, unlike calipers or some micrometers. Enlarged view of work area is displayed on the screen for visuar control of measurement.

Technical characteristics
  • Measuring range
    0 – 12 mm
  • Accuracy
    0,005 mm (0,001 mm upon demand)
  • Power supply
    5 W max
  • Data transmission
    Bluetooth, SD-card
  • Screen size
    320 x 240 px/3,5″
  • Image resolution
    640 x 480 px
  • Weight
    2,5 kg
  • Dimensions (W x D x H)
    250 x 275 x 275 mm
STANDARD FEATURES
  • CrimpiX vs caliper
    CrimpiX vs caliper
    The jaws of a caliper doesn‘t fit the shape of a crimp. As a result it cannot always get to the bottom of a crimp or the sample can turn. In both cases obtained height values will be wrong. Another reason of improper measurement results is overcompression of the sample.
  • CrimpiX for splice connection
    CrimpiX for splice connection
    CrimpiX guarantees proper positioning and correct measurement values thanks to a customized design of a clincher – it follows the shape of a crimp. Overcompression is impossible due to spring-loaded pin – it brings pressure sufficient for measurement, but without a risk of sample deformation.
  • CrimpiX vs micrometer
    CrimpiX vs micrometer
    Due to the shapes mismatch within micrometer measurement crimp may be positioned between the anvil and the pin randomly, both in the longitudinal and in transverse planes. Thus, the accuracy of measurement depends on the skills of operator.
  • CrimpiX for standard crimp
    CrimpiX for standard crimp
    For standard crimp height measurement CrimpiX is used with flat plateau clincher. Accuracy is provided by built-in camera: it fixes sample positioning, simplifying detection of the operator’s error.
OPTIONS
  • Clincher
    Clincher
    Clincher follows the shape of a sample, which excludes the risk of improper positioning of a sample and false results. Сlincher is quick-changeable and it allows to measure different connections with one device.
  • Calibration
    Calibration
    Flat surface of the clincher is used to set zero position for measurement.
  • Camera
    Camera
    Built-in camera displays enlarged view of the work area facilitating the operator‘s work. Captured images and measurements are saved on SD card or can be transferred to PC by Bluetooth.
  • Spring-loaded measuring pin
    Spring-loaded measuring pin
    Spring-loaded measuring pin provides sufficient pressure to measure the sample, but doesn‘t deform it.
  • Extensive assessment of the quality
    Extensive assessment of the quality
    CrimpiX can be synchronized with Viso software: measurement results will be automatically added to Viso report on connection comprehensive quality check.
